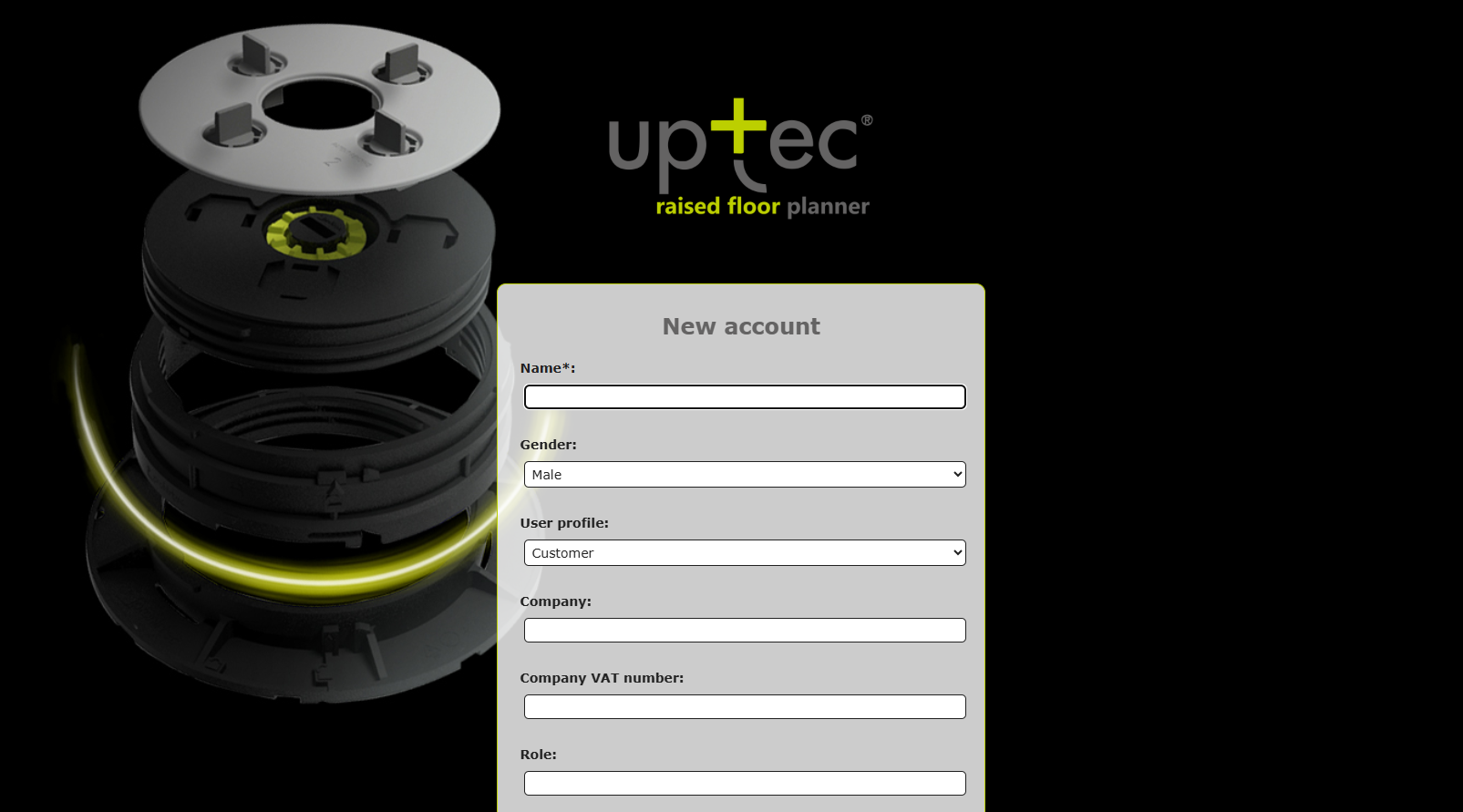

DESIGN YOUR RAISED FLOOR!
A new platform at your disposal to find out which and how many items are needed for the realisation of your project.
THE INDUSTRY'S MOST ADVANCED INSTALLATION SYSTEM FOR RAISED EXTERNAL FLOORS
3 basic elements and 3 accessories assembled together. UPTEC is the Profilitec patented, fast and flexible complete solution for the realization of outdoor floating raised floors, in ceramic or wood, of any height.
EPD CERTIFICATION
Uptec is certified EPD. In building assessments, construction products are assessed by Environmental Product Declarations (EPDs) performed in accordance with ISO 14025 and EN 15804:2012+A2:2019.The analysis assesses the life cycle of the Uptec system and measures it in terms of its carbon dioxide emissions footprint under an independent third-party verification of the declaration and data, according to ISO 14025:2006. A series of case studies have demonstrated that Uptec has an advantage of over 70% in terms of the environmental impact of carbon dioxide emissions when comparing to traditional methods of external flooring assemblies such as bonded tile on a lightweight screed.
WHERE TO USE A RAISED FLOOR?
POOL EDGES
TERRACES
PATIO
WHY CHOOSE A RAISED FLOOR?
FOR FLOATING FLOORS THAT HIDE PLANTS AND PIPES AND REMAIN INSPECTIONABLE
FOR FLOORS ON WHICH WATER FLOWS
TO REALIZE RAISED FLOORS ON DISCONNECTED OR SLANTED SURFACES
UPTEC 3 IN 1 3 products in one system
3 accessories for any configuration
SUPA2
5/64" joint tab
SUPA4
5/32" joint tab

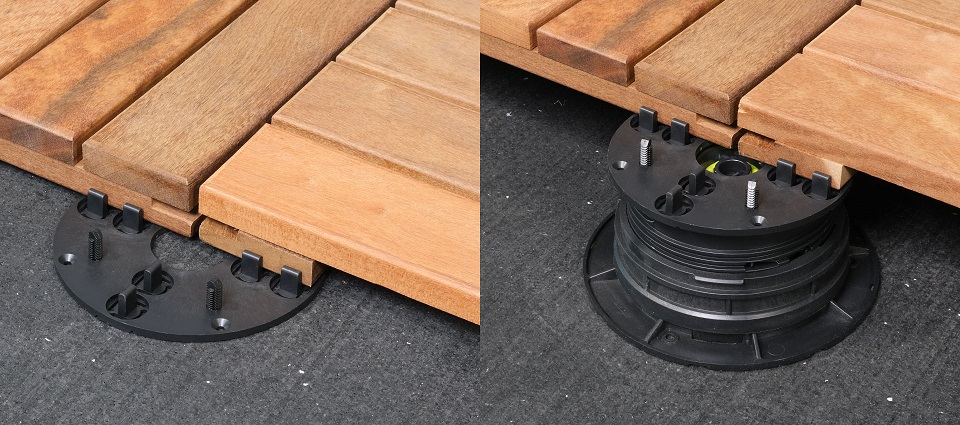

SUPAW
Tabs for laying with WOODEN BEAMS

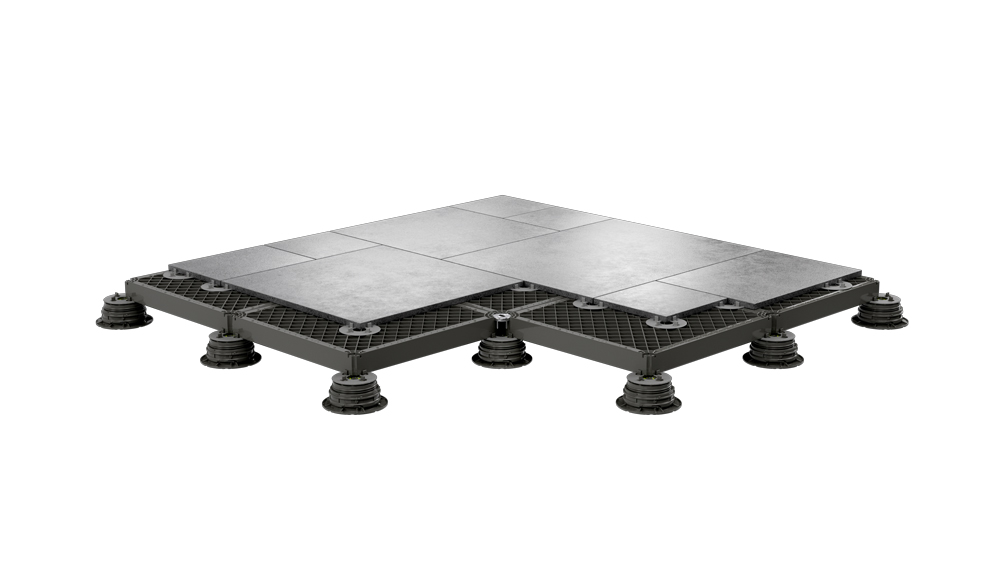

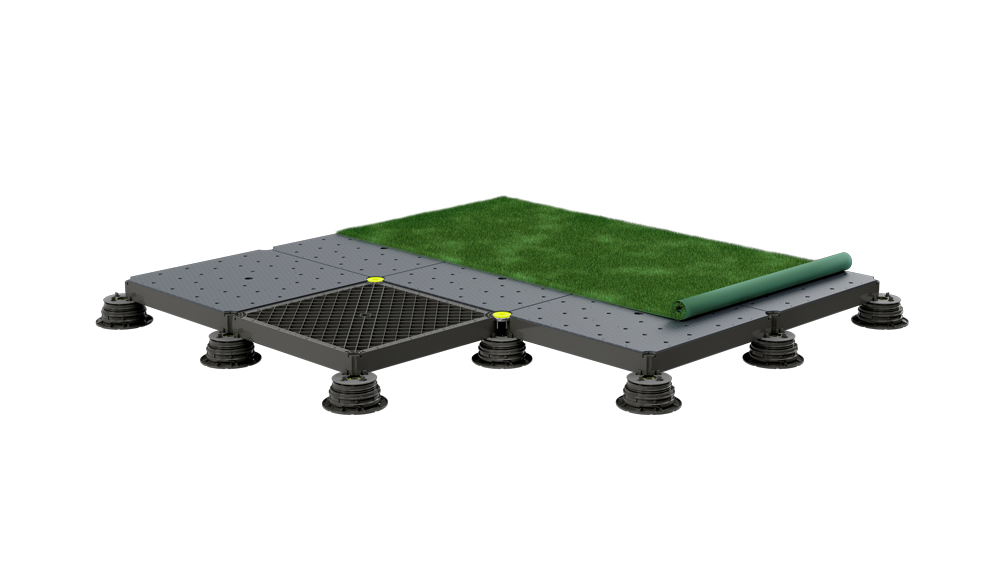

SUPATRAY
Anti fragmentation and anti wind uplift tray
The innovative Uptec SUPATRAY is meticulously engineered to provide a versatile and durable raised floor solution principally to protect against injuries in the event of tile breakage. Featuring a honeycomb structure and practical dimensions of (598 x 598 x 38mm) 23 1/2” x 23 1/2” x 1 1/2”, it creates a solid substructure for any raised floor project. Manufactured from recycled ABS plastic material, it is designed to withstand the test of time and the most challenging weather conditions, offering exceptional durability and impressive load-bearing resistance.
The SUPATRAY anti wind uplift system includes a plastic tray featuring three adhesive tracks (perimeter, center, and auxiliary sections), Profilitec adhesive FIXXTEC and the locking disc SUPALOCK. The assembly process is straightforward. Starting with bonding the porcelain pavers onto the SUPATRAY using FIXXTEC adhesive applied to the tracks. Next, the pedestals are positioned and leveled prior to placing the assembled SUPATRAY atop them. To ensure a level and secure surface, all four corners of the trays are firmly connected using the SUPALOCK disc, subsequently locked in by using the SUPAK key.
WHY USE UPTEC?
FULL SYSTEM WITH ONLY 3 SKUS

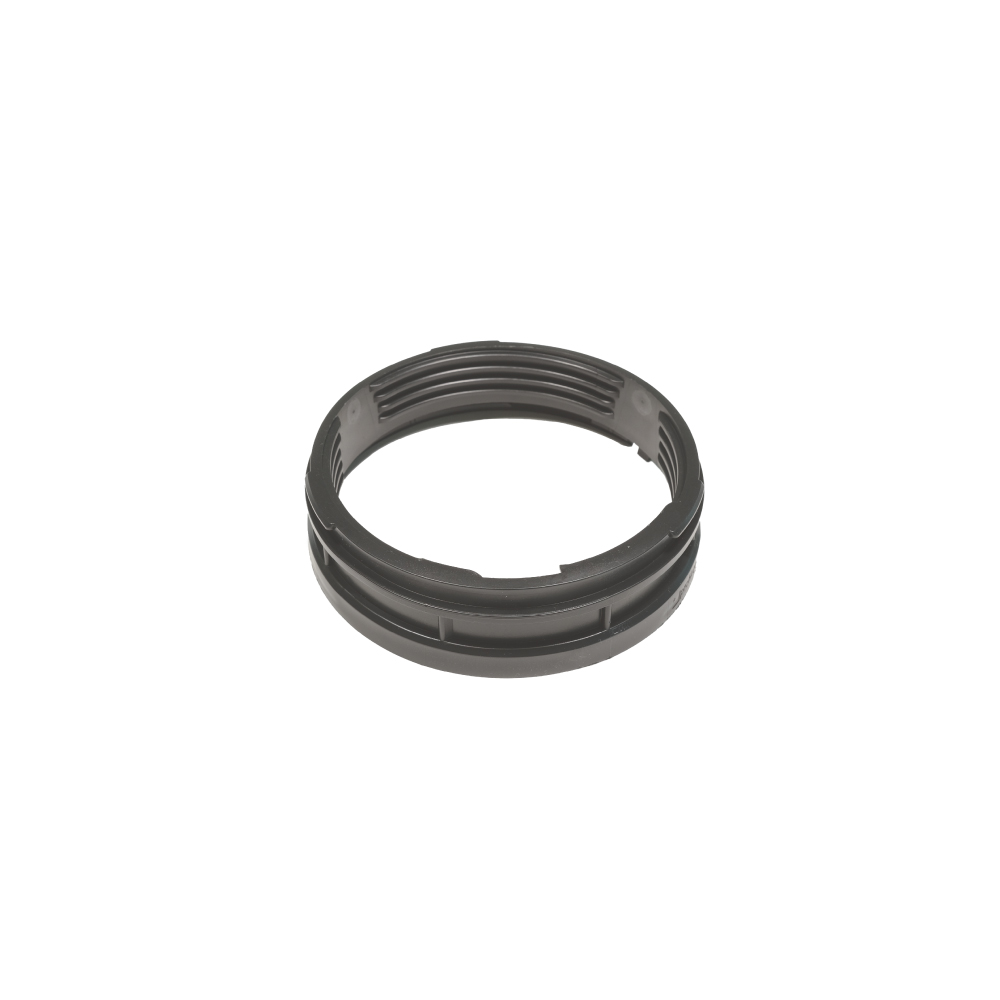

SIMPLY ADD SUPAR RING TO INCREASE PEDESTAL HEIGHT

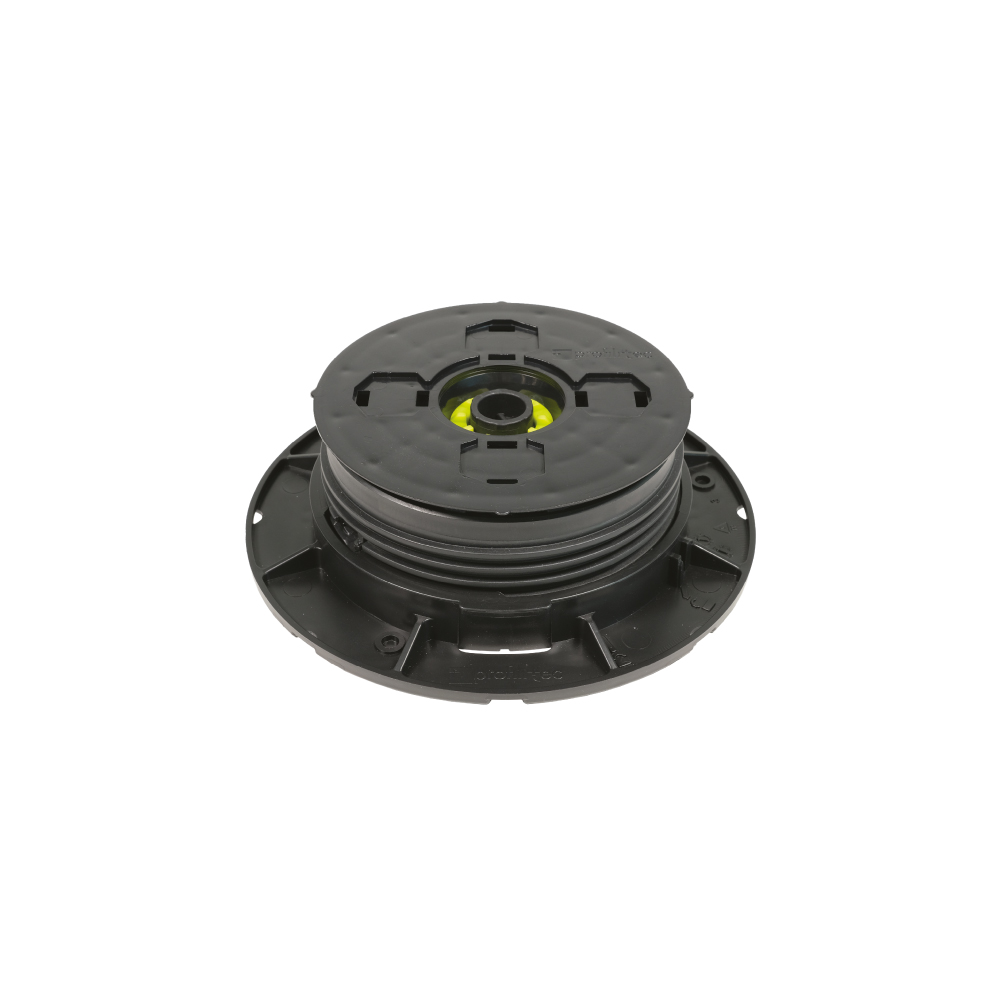

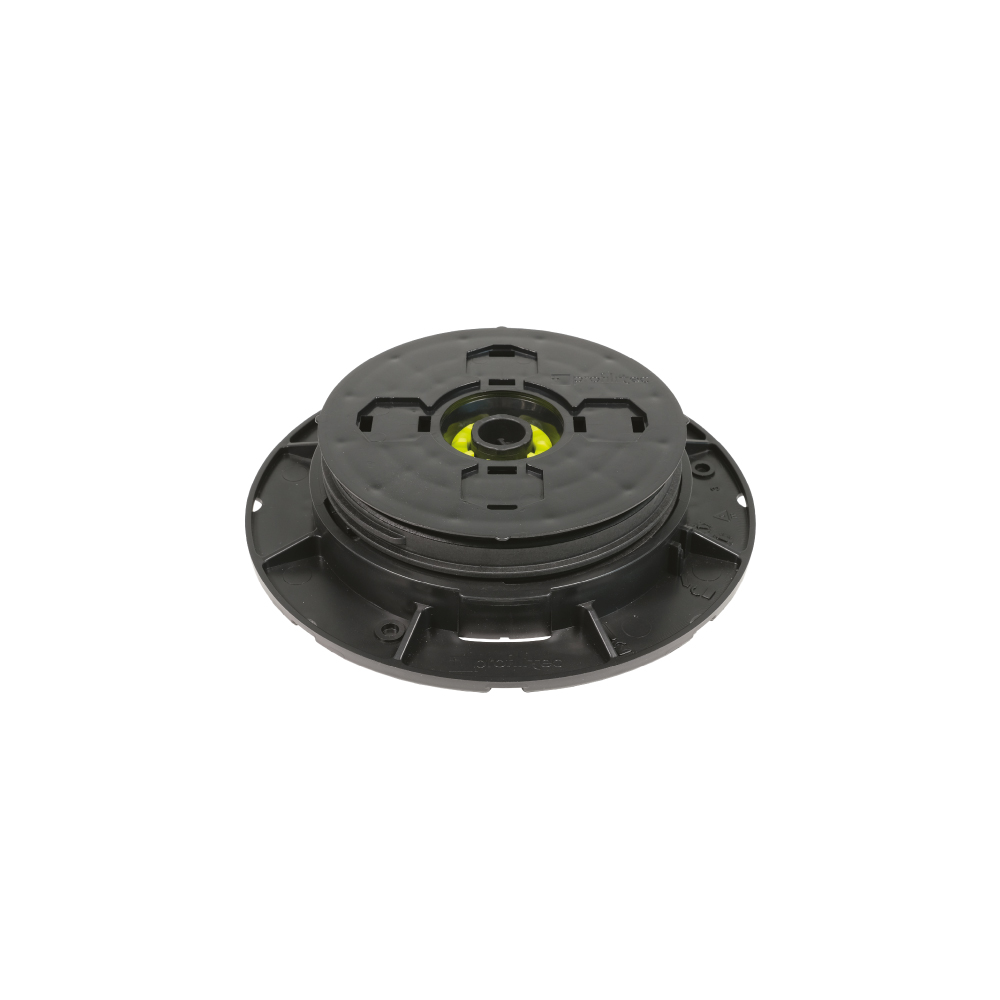

HEIGHT ADJUSTABLE PEDESTAL
OPTIMIZING INVENTORY SPACE MANAGEMENT AND INVESTIMENT AND EASY MANAGEMENT ON SITE
SELF-LEVELING HEAD TO REACH UP TO 5% SLOPE
SIMPLE SWITCH MECHANISM BETWEEN FIXED AND SELF-LEVELING MODE
SWITCH HEADS FOR STANDARD INSTALLATION OR FOR WOOD OR ALUMINIUM JOISTS
HEADS WITH SOUND DAMPENING RUBBER
TYPES OF INSTALLATION ON DIFFERENT TYPES OF FLOOR
HOW TO INSTALL UPTEC COMPONENTS FOR RAISED FLOORS?
Installation of a raised floor with 5/64" tiles.
How to protect the edge of the tile using the Bordertec BSR perimeter closing profile.
How to protect the edge of the tile using the Bordertec BSJ perimeter closing profile.
How to protect the edge of the tile using the perimeter closing system with clips.
