showertec STKP

Profiles for tileable shower

Profiles for tileable shower

The SHOWERTEC STK range includes a series of profiles dedicated to the shower area. They are products designed to simplify the installation phase. STKP profiles act as a transition between the sloping tiled shower tray and the floor. The latter can be combined with its STKF front profile to obtain a homogeneous and optimal finish thanks to the clean line of the installation. The Showertec STK profiles create bathroom environments with a minimalist and modern design, obtaining floor-level showers without obstacles and without architectural barriers.

View more
View less
Materials and finishes available
Download
Request a quote

  • STKP profile in stainless steel AISI 304 DIN.1.4301 Brushed

    1 - Sloping profile for installing linear drain as a floor to floor transition A conical brushed steel profile to be cut on site according to lenght of the slope required (2% gradient) to make a transition between the shower area and the surrounding floor space. A conical brushed steel profile in Aisi 304 with A at 5/16" (8 mm) and B at 1-3/8" (35 mm) giving a 2% gradient. Standard lenght 4' 5" (1,35 m) which can be cut on site. This profile needs to be use inserting in our TR 6, 8, 10, 11, 12,5 mm- according to tile height- polished steel profile in 8'10" or 4' 5" (2,7 m or 1,35 m).

    Sezione Tecnica Showertec STKP Profilitec

    KP + TR

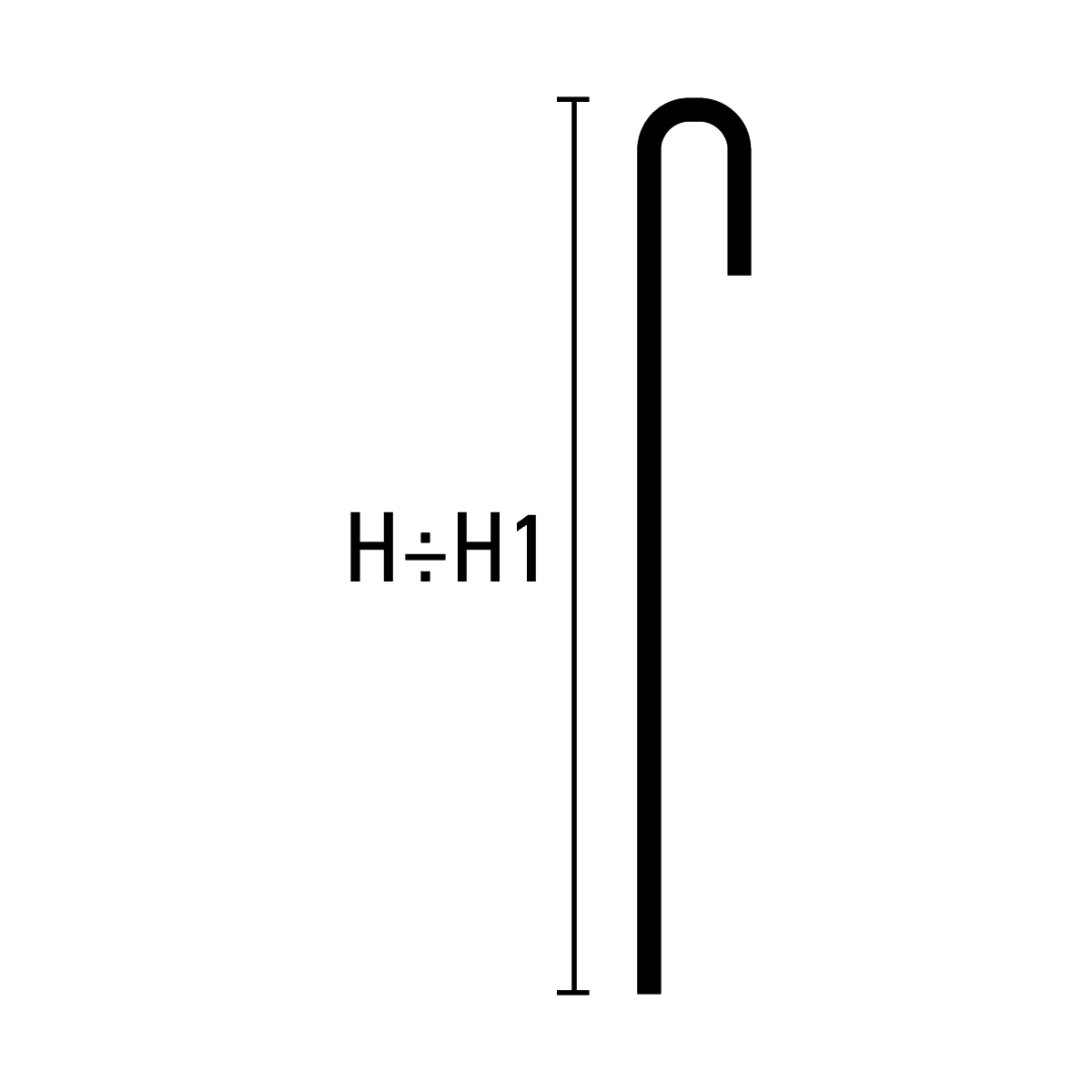

     Sezione Tecnica Drenaggio Conical Profile KP 35 IS Profilitec

    KP-I
    Stainless Steel 304 / Brushed
    HxB (in) Art.
    3/8x1-3/8 STKP 35/100 IS135DX
    3/8x1-3/8 STKP 35/100 IS135SX
    1/2x1-3/8 STKP 35/125 IS135DX
    1/2x1-3/8 STKP 35/125 IS135SX
    3/8x1-7/8 STKP 48/100 IS200DX
    3/8x1-7/8 STKP 48/100 IS200SX
    1/2x1-7/8 STKP 48/125 IS200DX
    1/2x1-7/8 STKP 48/125 IS200SX
  • STKP - Datasheet
